8MM
- Mass per metre
- 0.395 kg
- Per 12 m bar
- 4.74 kg
- Bars per tonne
- ≈ 211
Stirrups, ties and slab distribution steel.
BIS certified · IS 1786:2008
Strong today. Stronger tomorrow.
WIN TMT 550 is a high-strength Fe 550 reinforcement bar, melted, cast, rolled and quenched at our integrated mill in Palavoor, Tirunelveli.
The product
Fe 550 steel for everyday construction
WIN TMT 550 is made for homes, shops and everyday structures, where you need dependable strength at an honest price.
Every bar is made start to finish in our own integrated mill, from scrap melting to the quenched, tagged bar, so the quality is in our hands at every step.
Integrated millMelt to finished bar in one plant
Thermex quenchedHard outer rim, ductile core
Spectro-checkedEvery heat tested before casting
Tagged bundlesSize and grade on every bundle
Sizes available
Four sizes, from stirrups to columns
Supplied in standard 12 m lengths. Weights shown are the nominal mass under IS 1786, so you can check billed weight against delivered weight.
10MM
- Mass per metre
- 0.617 kg
- Per 12 m bar
- 7.40 kg
- Bars per tonne
- ≈ 135
Slab main bars, lintels and sunshades.
12MM
- Mass per metre
- 0.888 kg
- Per 12 m bar
- 10.66 kg
- Bars per tonne
- ≈ 94
Columns, beams and footings in houses.
16MM
- Mass per metre
- 1.580 kg
- Per 12 m bar
- 18.96 kg
- Bars per tonne
- ≈ 53
Heavier columns, beams and foundations.
CALCULATORCheck your load weight
Manufacturing
Melted, cast and rolled under one roof
Because we make our own billets, every WIN bar traces back to a known heat with known chemistry.
-

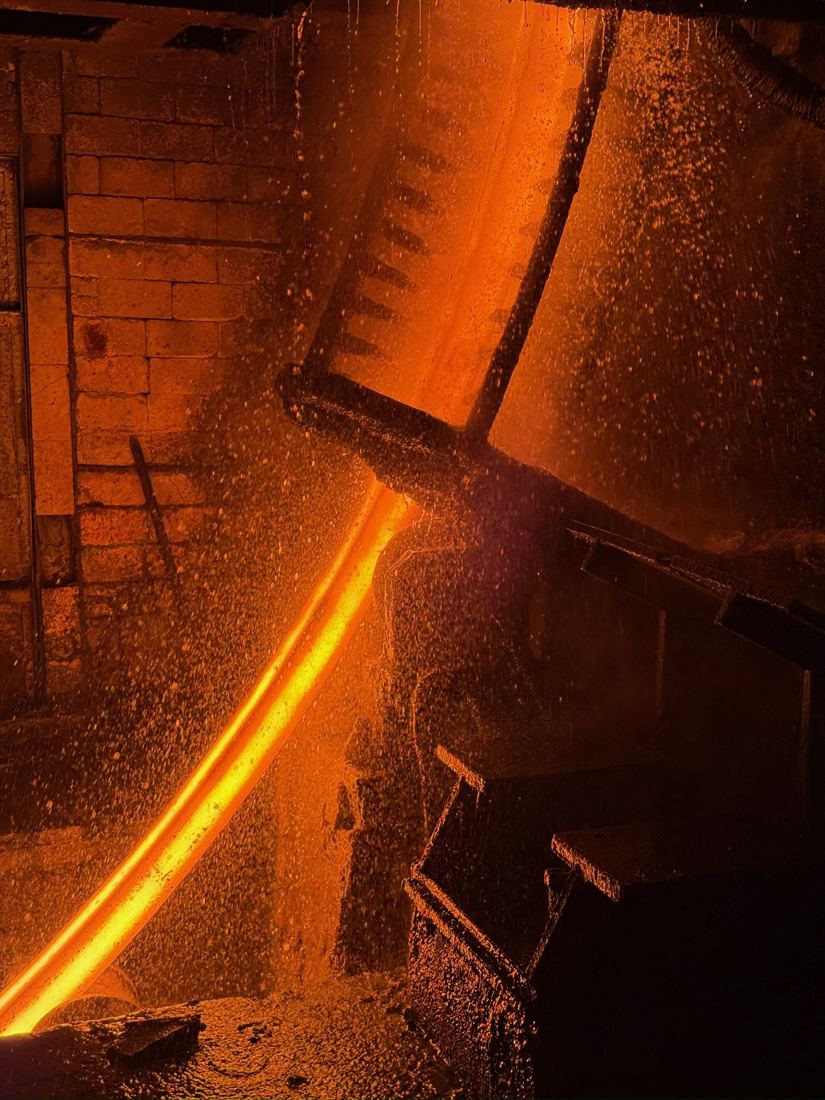

Melt
Steel is melted in a 12 MT induction furnace and its chemistry is checked on a Bruker Q4 POLO spectrometer.
-
Cast
Approved heats are cast into billets in-house and sent hot to the rolling mill.
-

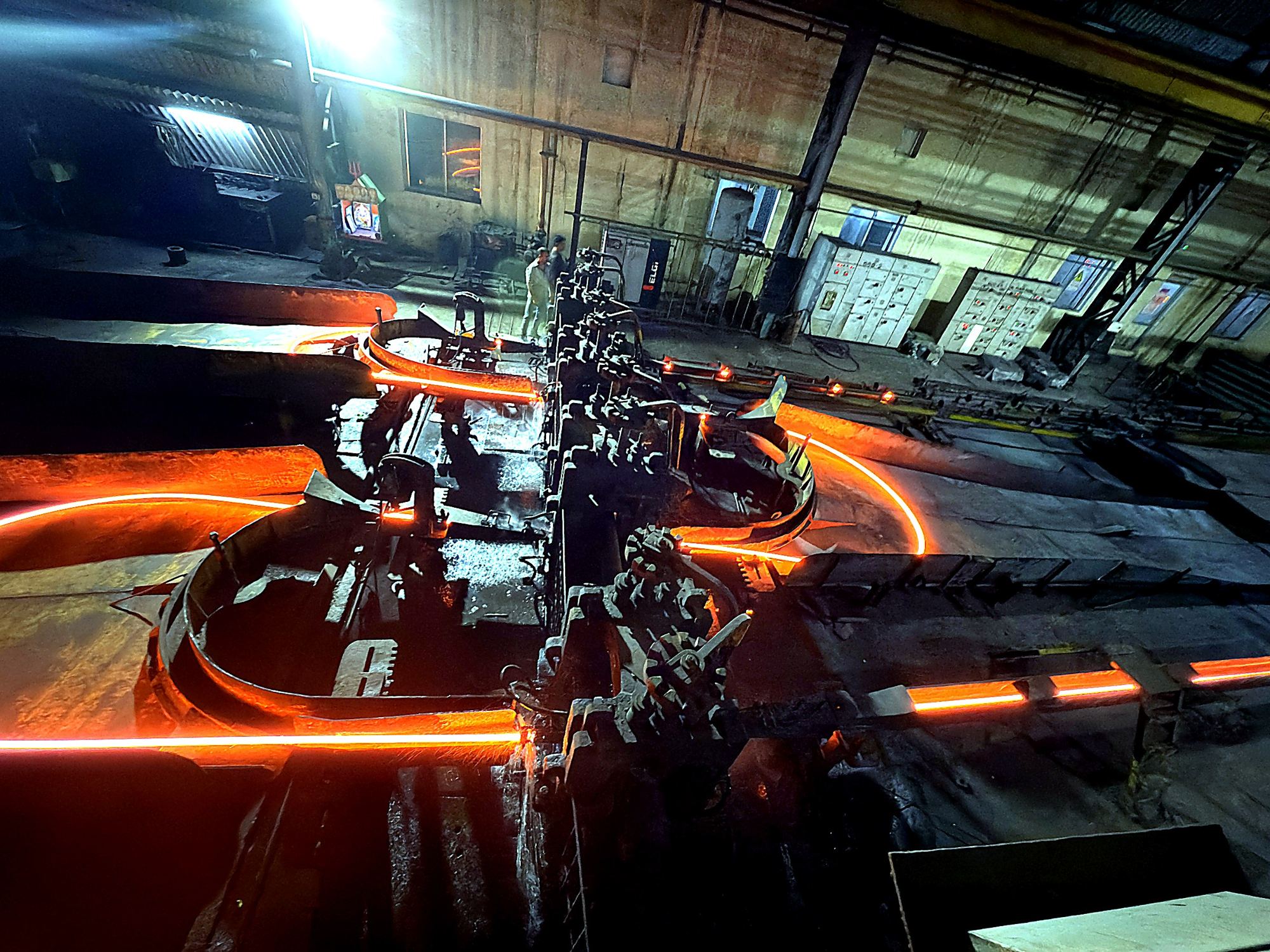

Roll & quench
Billets are rolled to size, then pass through a German Thermex quenching system that forms a hard rim around a ductile core.
-
Test & tag
Lots are tested against IS 1786, then bundled and tagged with size and grade before dispatch.
Quality
What Fe 550 guarantees
The minimum values IS 1786:2008 sets for grade Fe 550. Every WIN lot is made and tested to meet them.
| Property | Requirement |
|---|---|
| 0.2% proof stress / yield strength | ≥ 550 N/mm² |
| Tensile strength | ≥ 585 N/mm², ≥ 1.06 × YS |
| Elongation | ≥ 10.0 % |
| Carbon | ≤ 0.30 % |
| Sulphur | ≤ 0.055 % |
| Phosphorus | ≤ 0.055 % |
| Sulphur + phosphorus | ≤ 0.105 % |
| Bend and rebend | As per IS 1786 |
Ask your dealer, or contact us, for the mill test certificate for your lot.
BIS certifiedLicence CML No. 6900106309
IS 1786:2008
High-strength deformed steel bars
CML No. 6900106309
IS 14650:2023
Steel billets for re-rolling
CML No. 6900104709
IS 15911:2010
Structural steel, ordinary quality
CML No. 6400173406
TN PWD approved
Startup India recognised (DPIIT)
Where it's made
Ferrosco Industries, Palavoor
A green-belted integrated steel plant in Tirunelveli district, with hills and wind farms on the horizon. Over 40 years in steel, and a network of 300+ dealers and partners across Tamil Nadu and Kerala.
- Melting
- 12 MT induction furnace
- Quenching
- German Thermex system
- Spectrometer
- Bruker Q4 POLO
- Annual capacity
- 1,00,000 MT
- Dealers & partners
- 300+
Rates & dealership
Talk to the mill
Ask for today's rate, find your nearest dealer, or enquire about becoming a WIN TMT dealer. We answer calls from 10 am to 6 pm.
